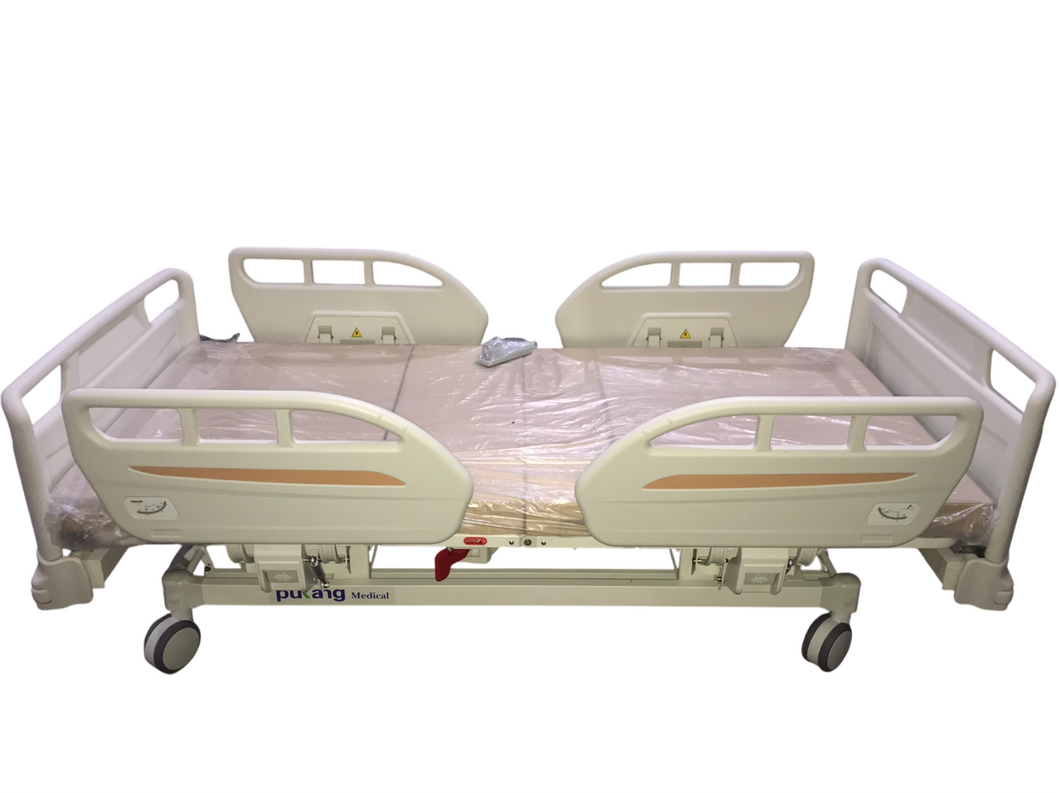

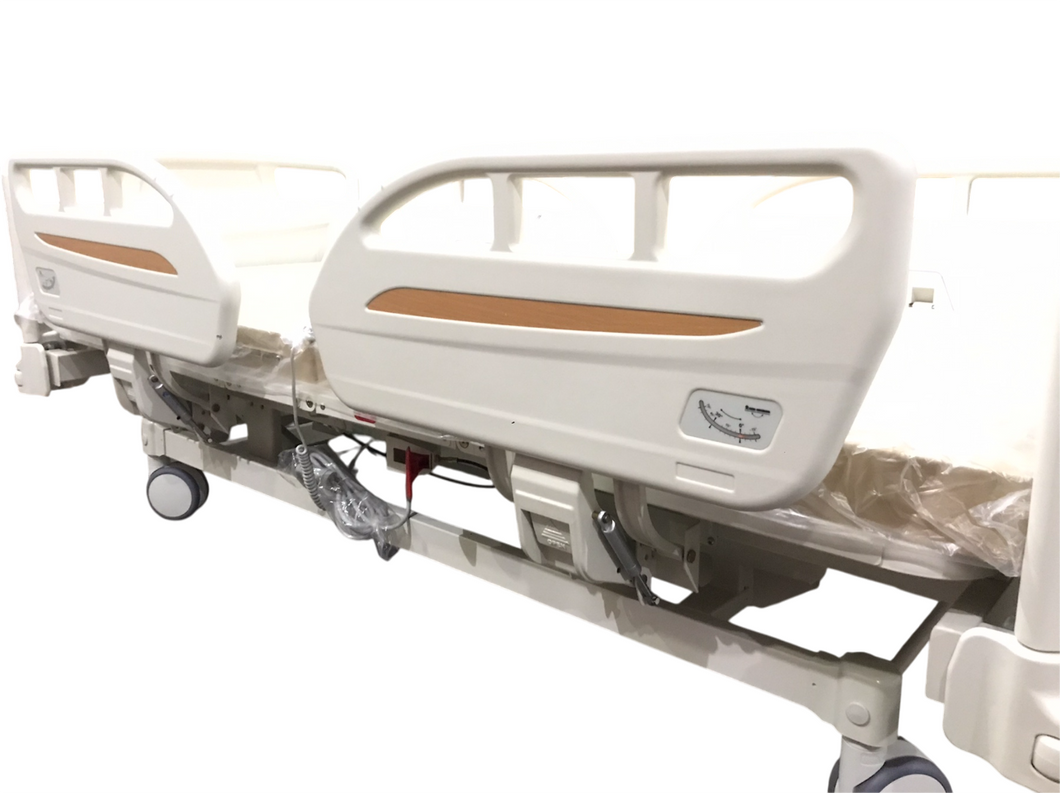

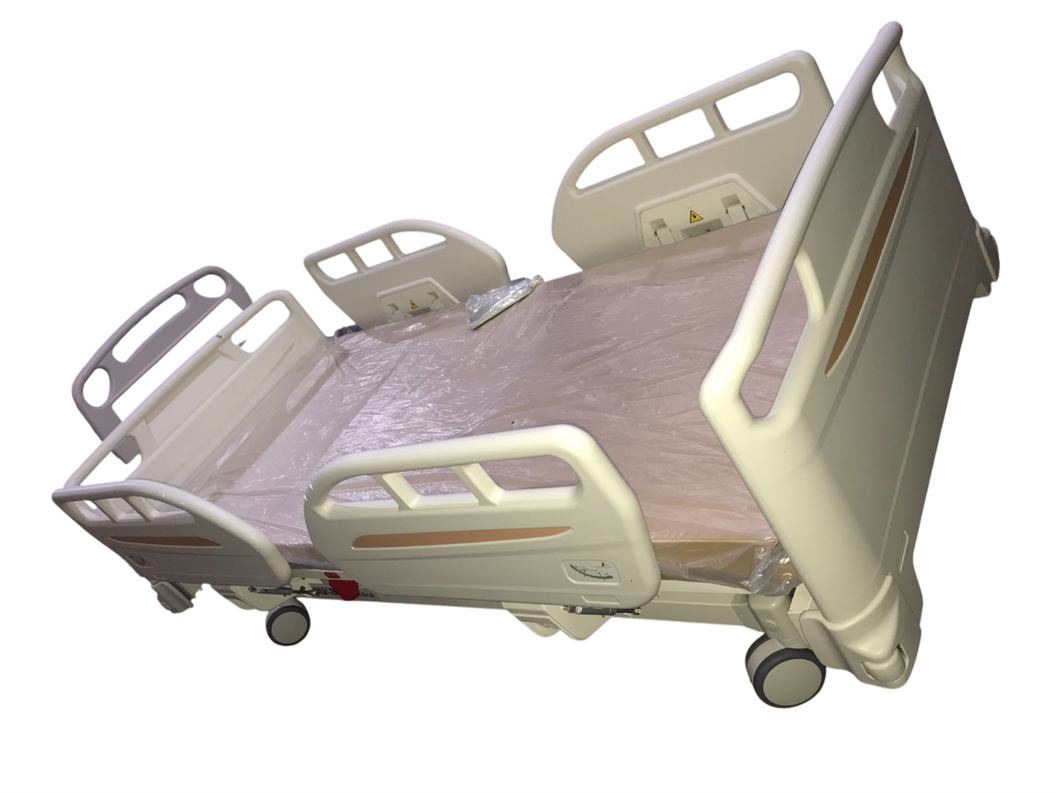

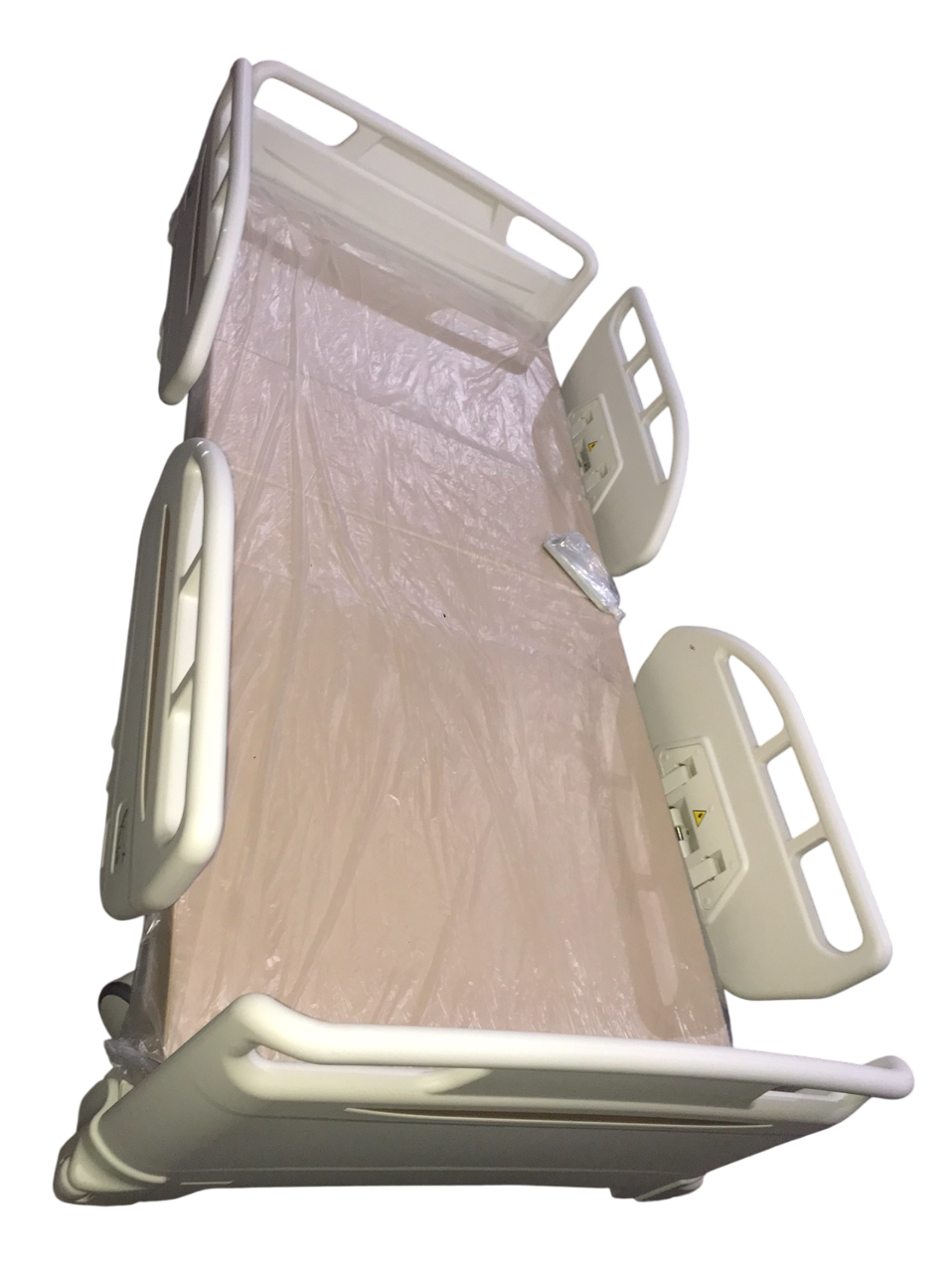

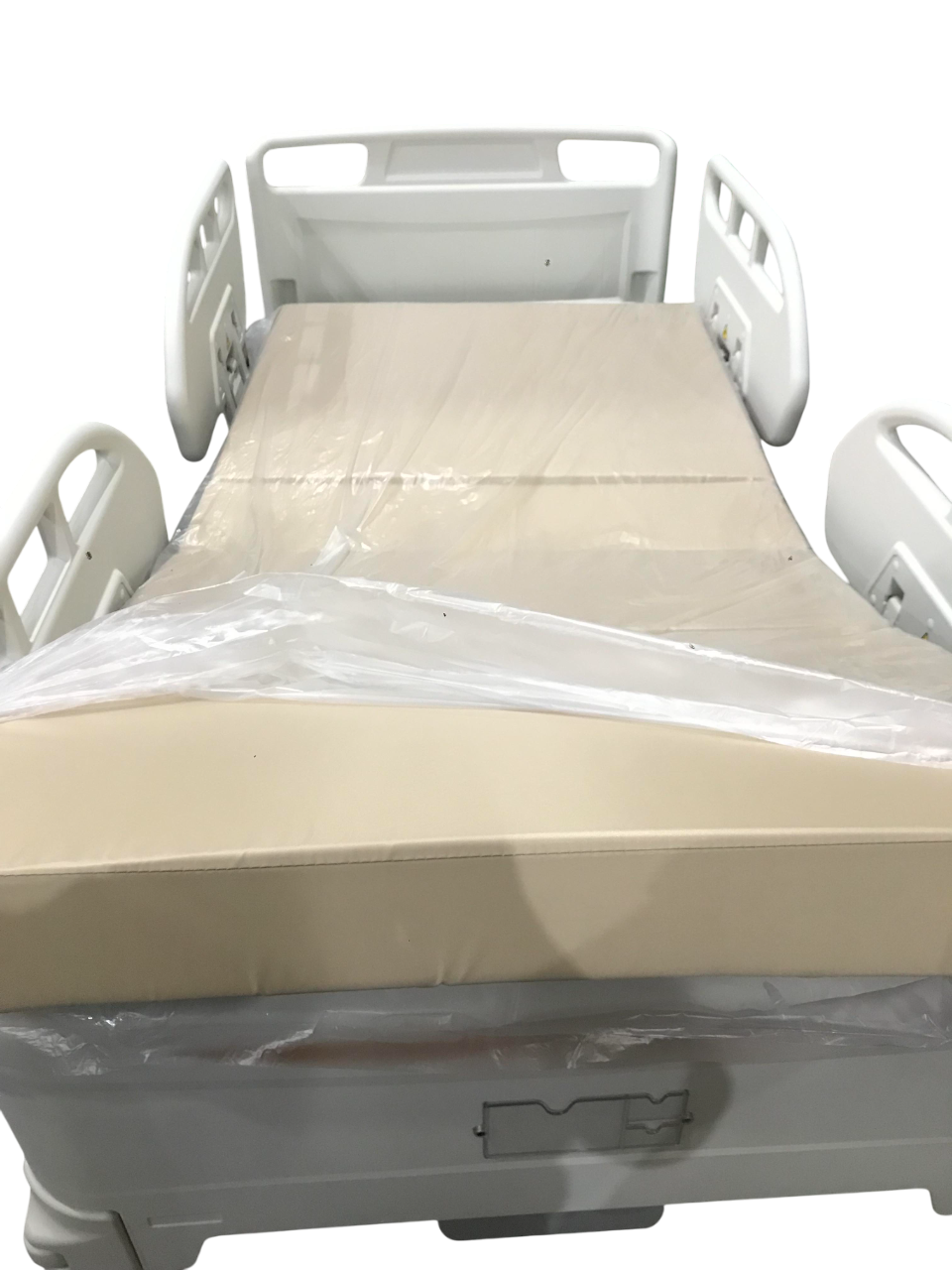

DA-2 Five Function Electric Hospital Bed
The Blue Archer
Simple press the corresponding keys on the handle exerciser, the following function will be realized. The lift and reset of back frame fold at 65º ±3 º. The lift and reset of leg frame fold at 35 º±3 º; lift in the range of 475～730mm±20mm in whole and reset, in addition, it can stop at any position in the stated range; the upright sag side rail can be rotated at 180º; infusion pole is available for intravenous drip infusion. The minimum rotation radius ≤1200mm.
- High quality ABS engineering plastic bed head and end.
- Automatic lifting guardrail, is safe and reliable, and can be fixed upward and downward.
- LINAK power device.
- Four truckles adopt central control system, which is stable and reliable.
- the product has been assessed and conforms to the following standards:
GB/T 19001-2000 idt ISO 9001:2000
- Size: 2100×900×500/720mm
- Back Section: 1025×900mm
- Leg Section: 830×900mm
- supply voltage: AC220V±20V
- power frequency: 50Hz± 1Hz
- Working Voltage: DC 24V
- Total power input: ≥450VA
- Working environment temperature: 5 ℃ ~ 40 ℃
- Relative humidity: ≤ 85%
- Atmospheric pressure: 86KPa ~ 106KPa
- Fuse: 1A
- Shell protection grade: IPX4
- Maximum test load: 4000N
- Safe working load: 1700N
- Hanging load of the infusion pole: <2kg
- Ajustable range of the infusion: ≥ 300mm
- Maximum vertical length of the soft link: ≤ 280mm vertical axis corresponds to the bed body
- Angle of Back Section: 0 °--65 °(±5 °)
- Angle of Leg Section: 0 °--35 °(±5 °)
- Adjustable Height: 475--730mm
